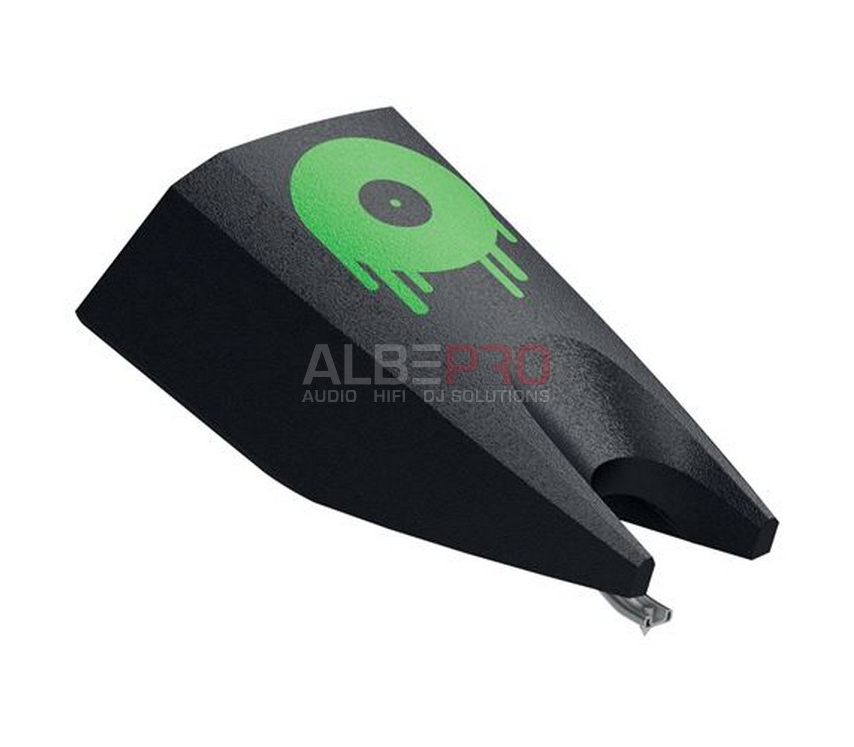

Ortofon Concorde MkII MIX Naald Stylus
Ga over de afbeelding met je muis om een vergroting te zien
The new stylus features
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out
Stylus MIX Technical data
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
