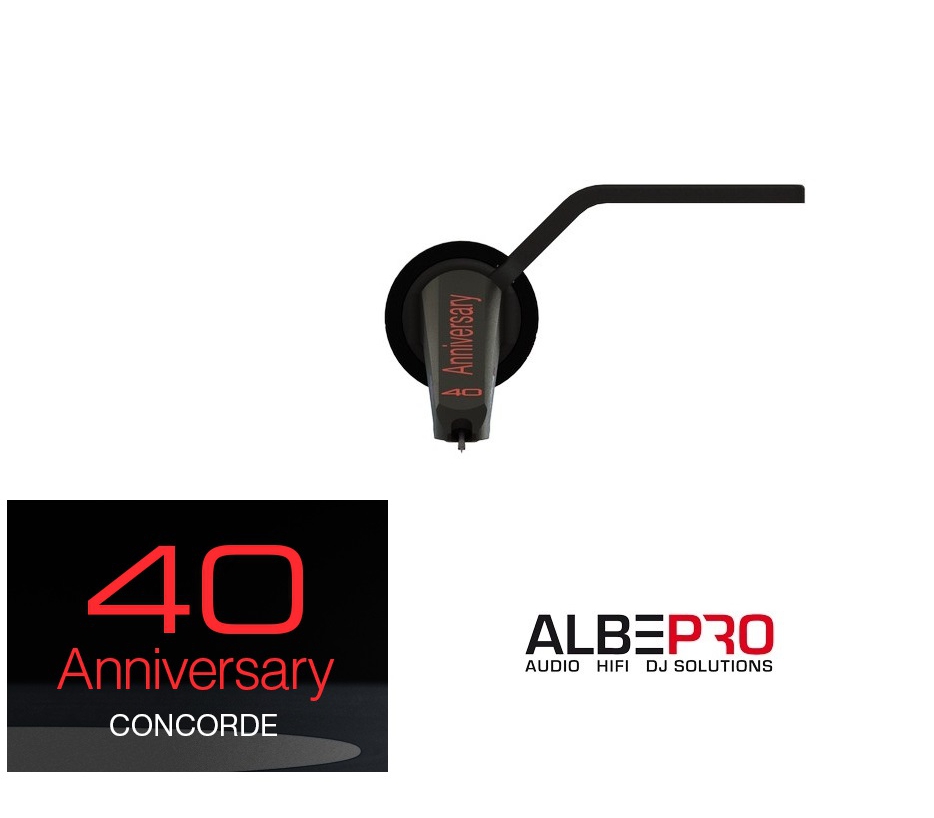

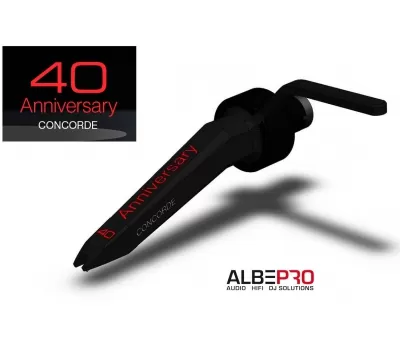

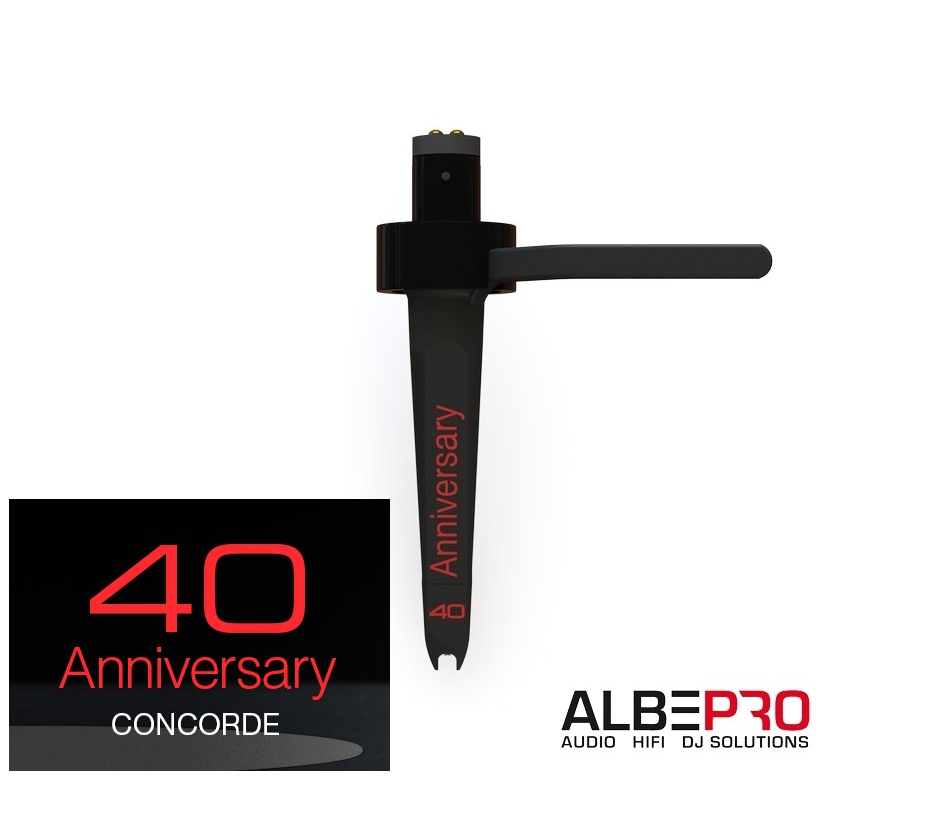

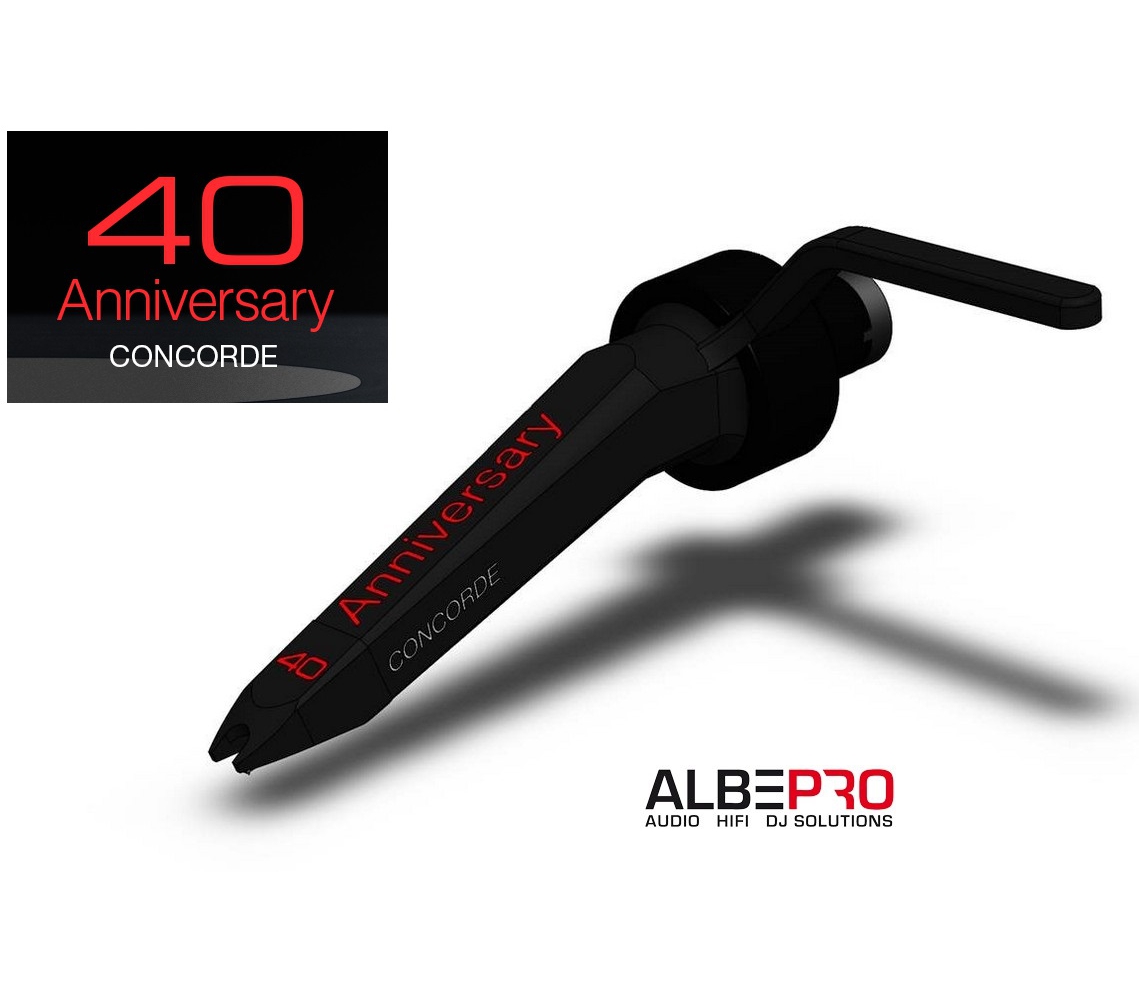

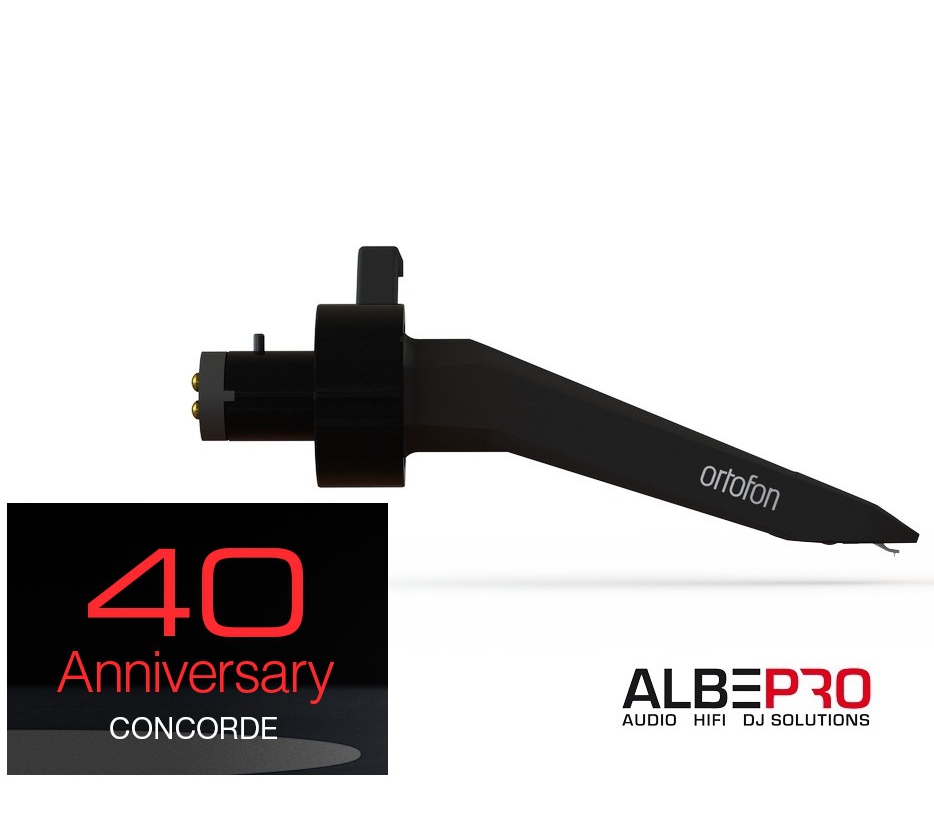

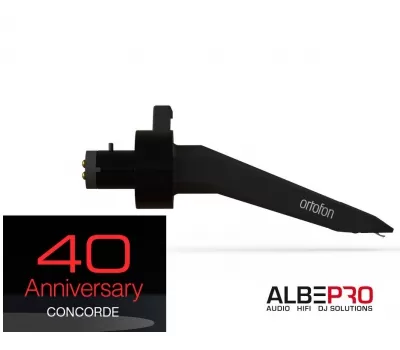

The cartridge that ensured the survival of Ortofon through the last decade of the 20th century
The Concorde 40 Anniversary uses the 2M Blue improved engine, which provides an increased output of 5.5 mV with a full-range reproduction and a high level of sonic accuracy. The sound is open, balanced, dynamic and detailed.
Features: Nude Elliptical diamond and split pole pins with a copper wire.
Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 18.5 g
Replacement stylus unit - 40 Anniversary
