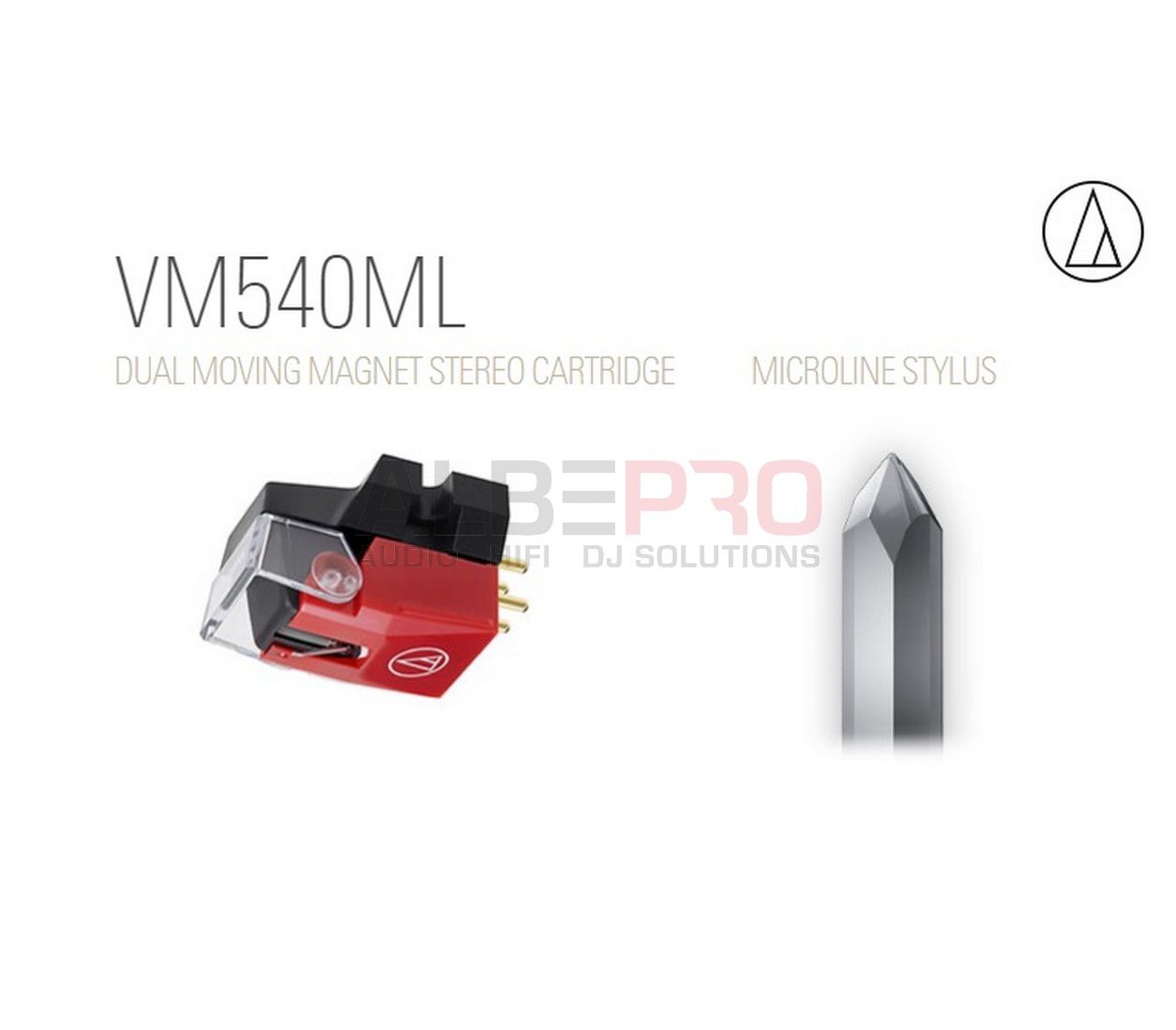

VM540ML
DUAL MOVING MAGNET STEREO CARTRIDGE WITH MICROLINE™ STYLUS
- MicroLine® profile diamond stylus
- VM type dual magnet system
- Para-toroidal coils improve generating efficiency
- Aluminium tapered cantilever
- Centre shield plate between stereo channels
- Durable low resonance polymer housing
PRODUCT FEATURES
- MicroLine® profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli
- VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
- Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
- Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
- Durable low resonance polymer housing
VM540ML
DUAL MOVING MAGNET STEREO CARTRIDGE
Standard model with a MicroLine® stylus. Distortion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn.
- Aluminium tapered cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between the left and right channels reduces crosstalk
- Durable low resonance polymer housing
AUDIO-TECHNICA’S INTERNATIONALLY-PATENTED DUAL MAGNET DESIGN REPLICATES THE STRUCTURE OF THE CUTTER HEAD.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal generating system
Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.
Centre shield plate reduces crosstalk
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
500 SERIES
Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 500 series.

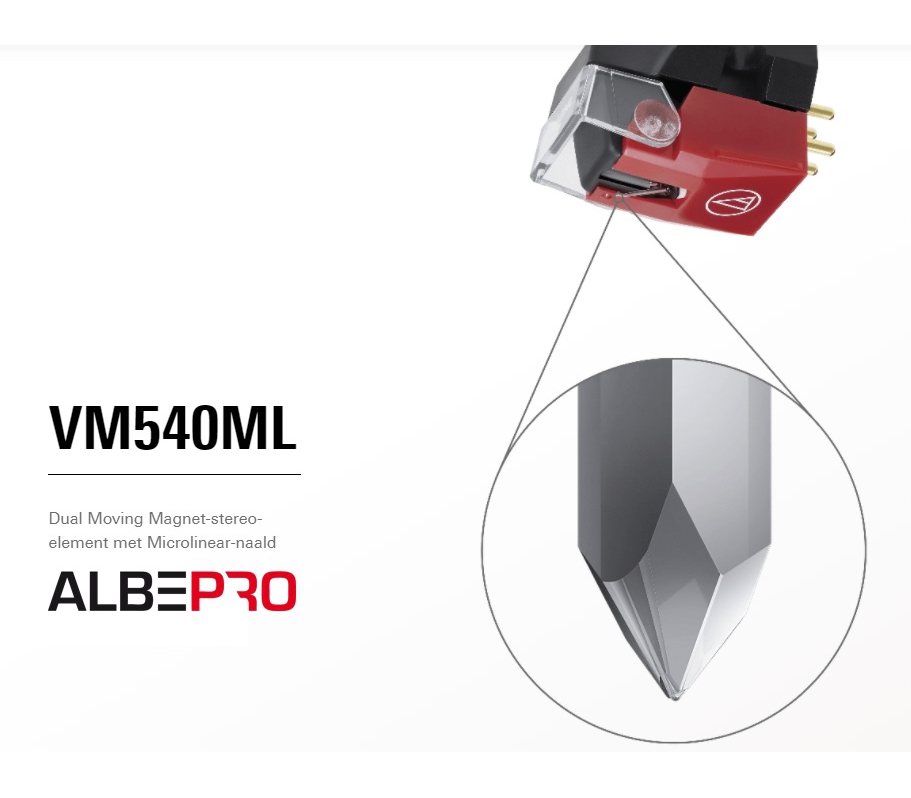

MICROLINE STYLUS
MicroLine® profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli.
Type | VM Type |
Mounting | 1/2” centres |
Frequency Response | 20 - 27,000Hz |
Channel Separation | 28dB (1kHz) |
Output Channel Balance | 1.0dB (1kHz) |
Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
Vertical Tracking Angle | 23˚ |
Vertical Tracking Force Range | 1.8 – 2.2g (2.0g standard) |
Stylus Shape | MicroLine® |
Stylus Size | 0.12 x 2.2 mil |
Stylus Construction | Nude Square Shank |
Cantilever | Aluminium Tapered Pipe |
Coil Impedance | 2,700Ω (1kHz) |
Static Compliance | 40 x 10-6 cm/dyne |
Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
Recommended Load Impedance | 47,000Ω |
Recommended Load Capacitance | 100 – 200pF |
Weight | 6.4g |
Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
Replacement Stylus | VMN40ML |
Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
