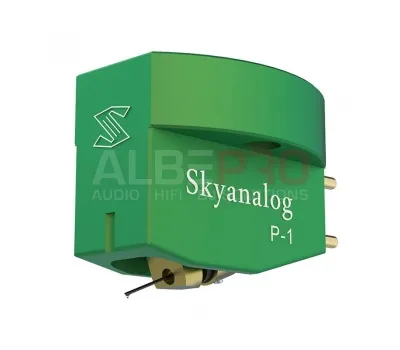

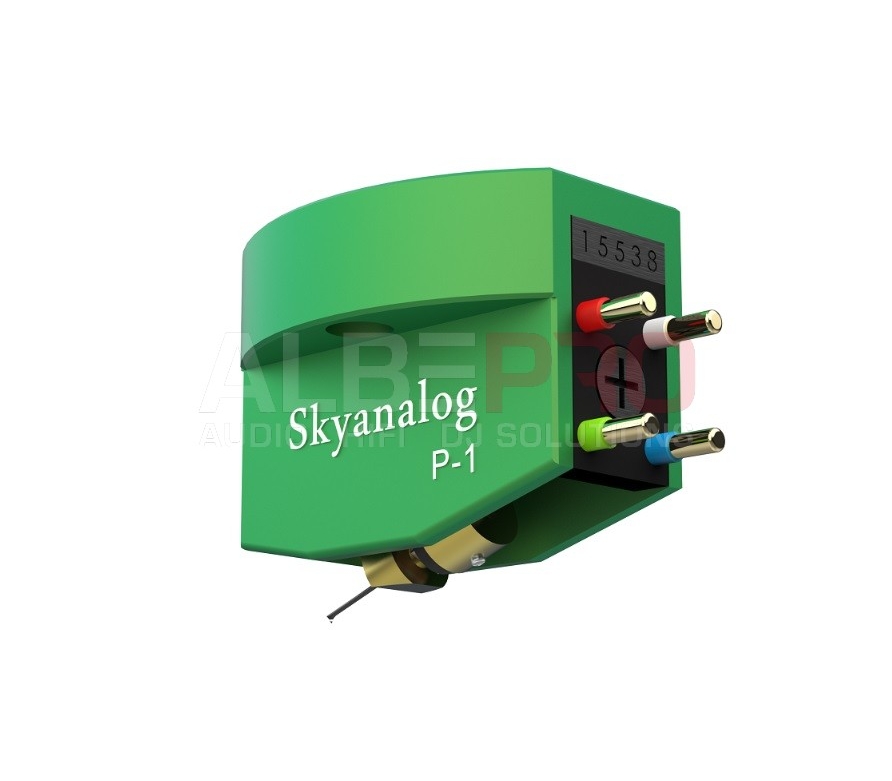

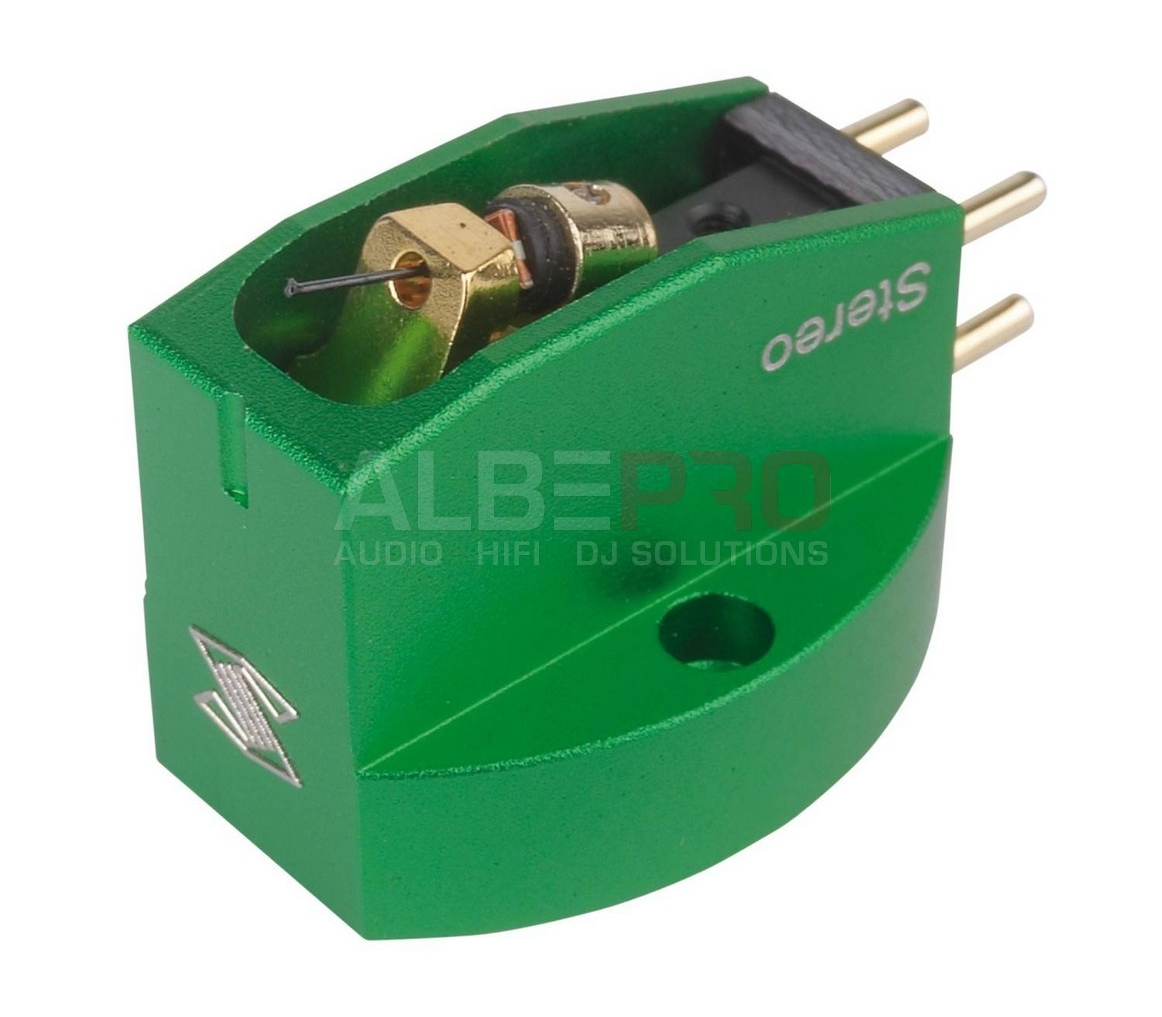

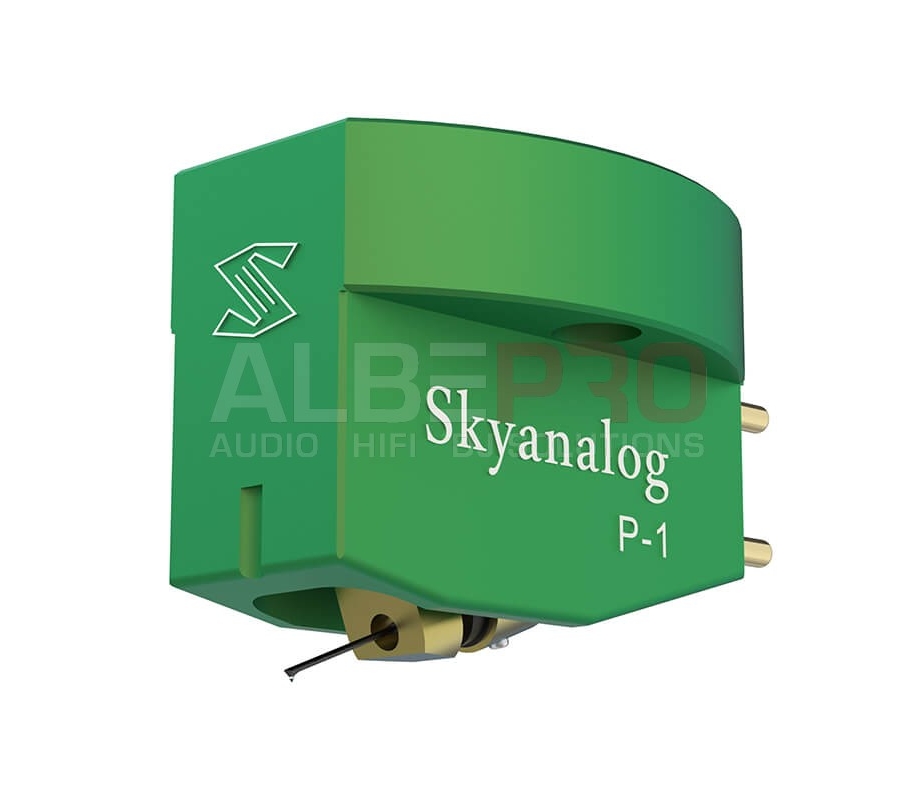

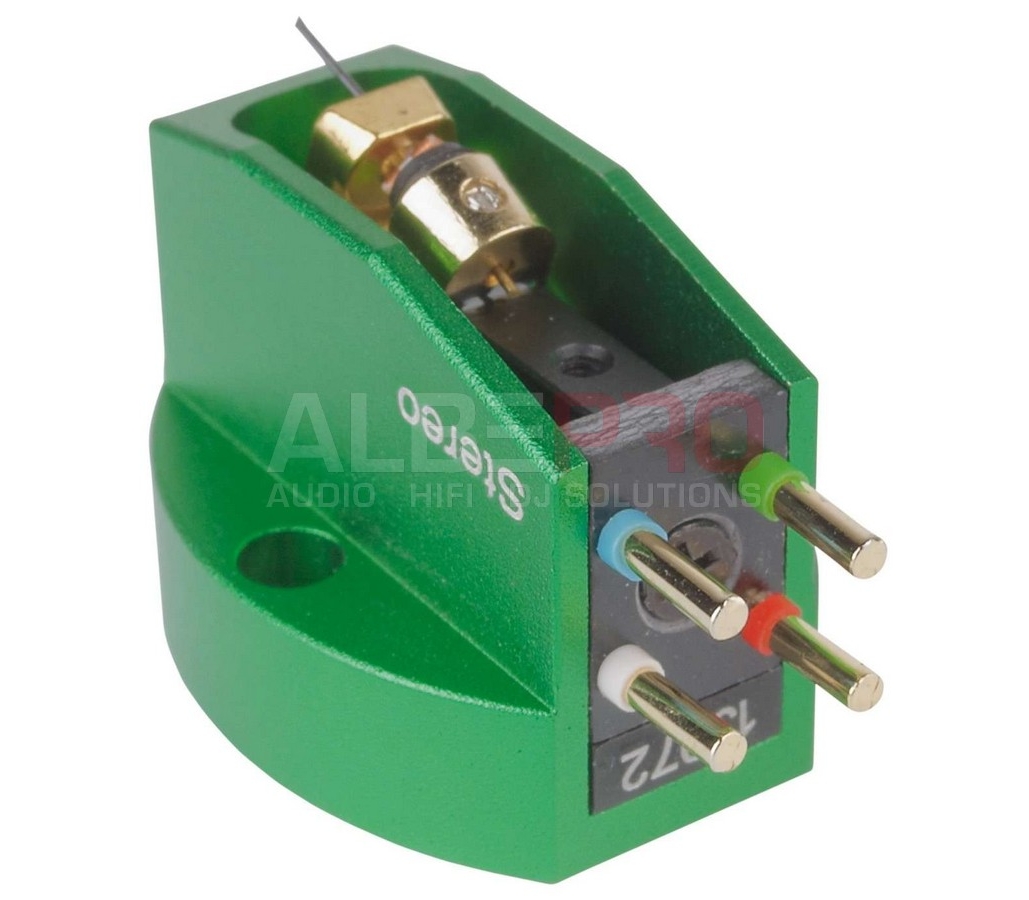

The Skyanalog P-1G (Green) features the advanced Yan System and the same open design as its highly regarded predecessor, the P-1. The motor is derived from the P-2, with its square iron spool, Boron cantilever, and Elliptical Fineline stylus, made in Japan. The P-1 Green is the ultimate high-end cartridge in its price range.
The P-series provides rich information playback with dynamic performance, offering clarity and transparency for music lovers, all at an affordable price.
Key technical features include:
- Diamond with elliptical (Fineline) cut, 5 µm radius
- Boron cantilever: low mass, high rigidity
- Iron plate and cross-wound coils
- Aluminum housing
- Solid plastic needle protection
New damping system "Yan" features:
- Minimal information loss and distortion
- Exceptional dynamic range and lifelike soundstage
- Improved transient response and clarity
- Analytical yet warm acoustics
- Average tracking force: 1.1-1.4 grams
Stylus Maintenance
To maintain your stylus, it is recommended to clean it only with a brush. Avoid using any liquid cleaners, as they could damage the stylus. Always handle with care to preserve its performance.
Specs
MODEL P-1GREEN SPECIFICATIONS
PHYSICAL | |
Cantilever | Boron |
Stylus | Elliptical |
Stylus Tip Radius | 5 x 150 µm |
VTA Vertical Tracking Angle | 20˚ |
Coil | Pure Iron Square Coil |
Weight | 10 grams |
ELECTRICAL | |
Output Voltage | 0.35 mV @ 3.54 cm/s |
Internal Impedance | 6 Ω |
Frequency Respons | 20 – 25.000 Hz +/- 1 dB |
Channel Separation | ˃ 30 dB at 1 kHz |
Channel Balance | < 1.0 dB |
DYNAMIC | |
Tracking Ability @ 315 Hz / 2 grams | 70 µm |
Dynamic Compliance | 12 µm / mN |
SETUP INSTRUCTION | |
Recommended Load | 100 – 220 Ω |
Recommended Tracking Force | 1.1 – 1.4 grams |
Optimum Tracking Force | 1.35 grams |
Recommended Tonearm Mass | Medium |
Optimum Working Temperature | 23 ˚C |
Break-In Period | 30 hours |
