Ortofon Concorde Pro S Stylus - Naald

Hover over an image to enlarge

35,00
(Including tax)
Out-of-stock
1921

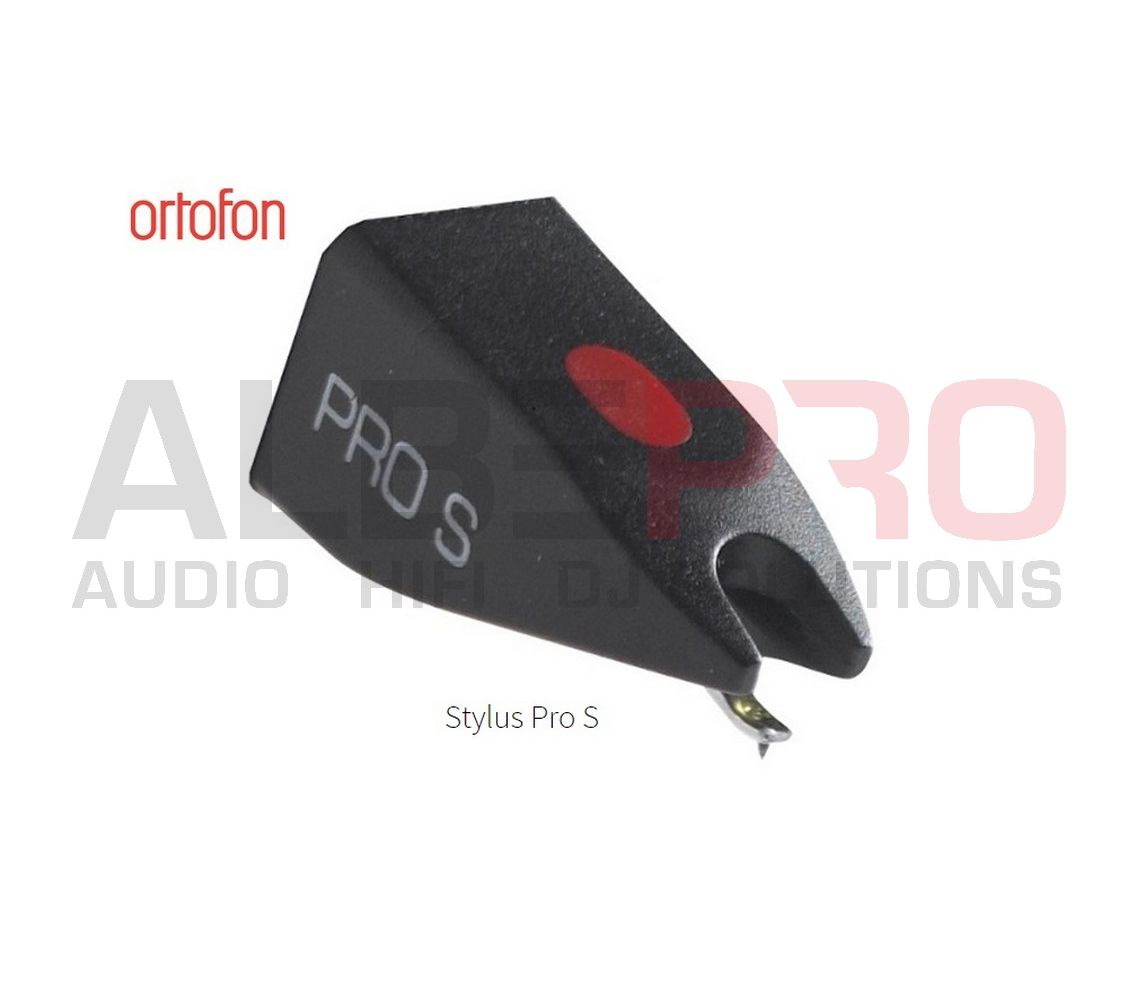

Concorde Pro S Stylus


The Pro S Stylus has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S Stylus provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S Stylus is a consistent performer and a fine all-arounder!

  • Stylus TypeSpherical
  • Tracking Force4.0 g (40 mN)
  • Output Voltage5 mV
  • Frequency Response20-18.000 Hz +/-2 dB


Pro S Stylus Technical data

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-18.000 Hz
Frequency response   -  20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmended tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range  -  3,0-5,0 g (30-50 mN)
Tracking force recommended  -  4,0 g (40 mN)Tracking angle  -  20°

Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde weight - 18,5 g
OM cartridge weight  -   5,0 g

Replacement stylus for the Concorde Pro S
