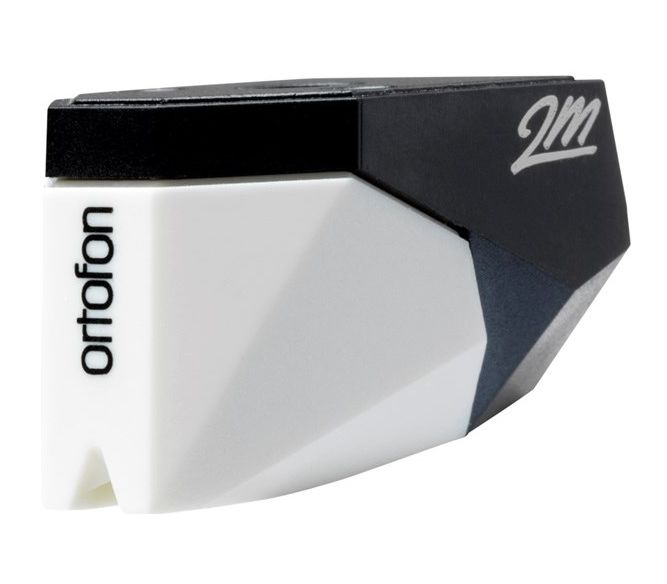

Ortofon 2M Mono
Hover over an image to enlarge
2M Mono features:
- an improved engine, which provides a high level of sonic accuracy
- R 18µm Nude Spherical stylus that is an optimal solution for playing mono microgroove LP vinyl records
- 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
2M Mono accessories included the package:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
- 2 x Screw M2,5 x 7
2M Mono technical data:
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz -
Channel separation at 1 kHz -
Channel separation at 15 kHz -
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral - 18 µm/mN
Stylus type - Nude Spherical
Stylus tip radius - R18 µm
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 700 Ohm
Internal inductance - 350 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/White
Cartridge weight without screws - 7,2 g
Replacement stylus unit - 2M Mono (interchangeable with 2M 78)
Specs
