Nagaoka MP-150

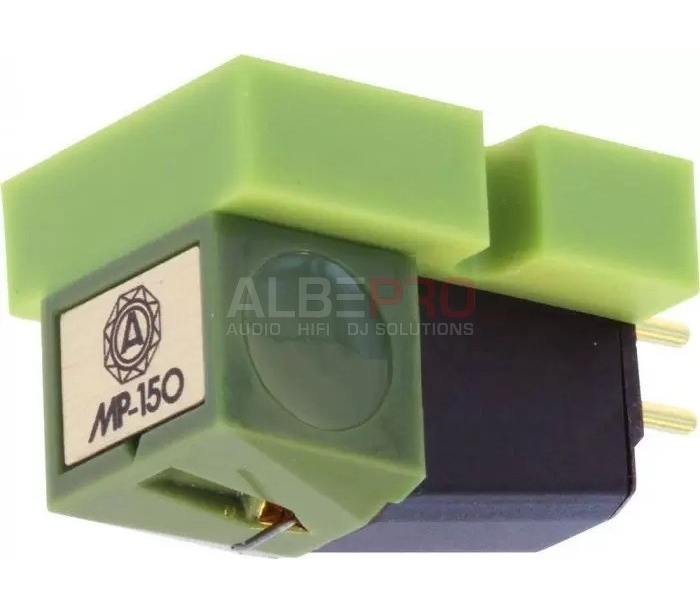

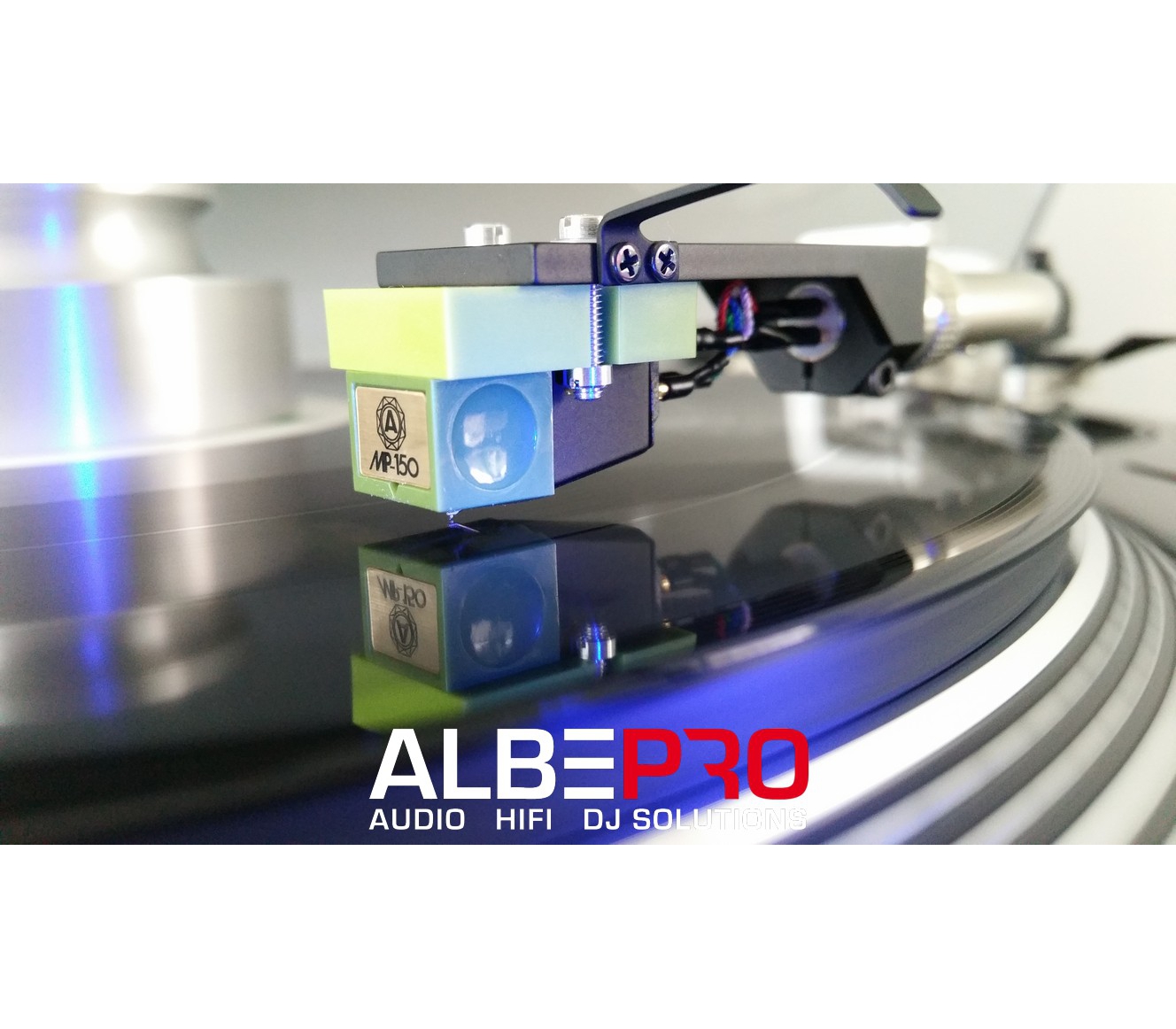

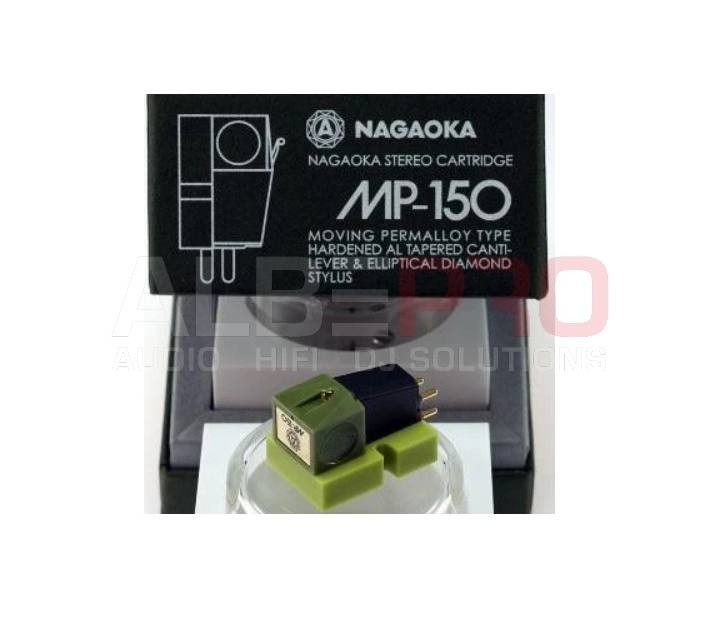

Nagaoka MP type stereo cartridge MP-150

A powerful wide-band sound model featuring a lively feeling of popping
An ambitious work using a cantilever made of tapered aluminum alloy and an elliptical diamond needle.
Characterized by a firm sound.
MP-150 was posted on HI-FI WORLD

General:
The Nagaoka MP-150 features a hardened low-mass tapered aluminum cantilever with a superfine polished elliptical diamond needle tip.
The frequency range is from 20 Hertz to 20 kiloHertz, the mass of an MP-150 is 6.5 grams and the maximum output voltage is 4.5 millivolts.
The tracking force range of the MP-110 is from 1.5 to 2 grams.

The Nagaoka MP-150 takes about +/- 30 hours to be played alone and feels most comfortable with a VTF (vertical tracking force of 1.75 grams, offers superior clarity, detail and dynamic contrast and a nice solid bass, excellent across the frequency spectrum.

We are dealing here with honest and sophisticated craftsmanship that can be enjoyed for years.

The interchangeable needle carrier remains a practical advantage of Moving Magnet, Induced Magnet and Moving Iron cartridges (as well as their high output voltage).

Specifications
- Type: Moving Irom MI High Output
- Cantilever: Hardened low-mass, tapered aluminum alloy for very high fidelity
- Stylus type: Superfine polished elliptical bonded diamond 0.4 x 0.7 Mils
- Weight: 6.5 g
- Output voltage @ 1kHz,5cm/sec: 4.5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 1.5dB or less
- Channel separation @ 1kHz: > 24dB
- Recommended loading: 47K ohms
- Dynamic compliance: 6.0 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Recommended Tracking force: 1.75g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P150
