Nagaoka MP-110H
Hover over an image to enlarge

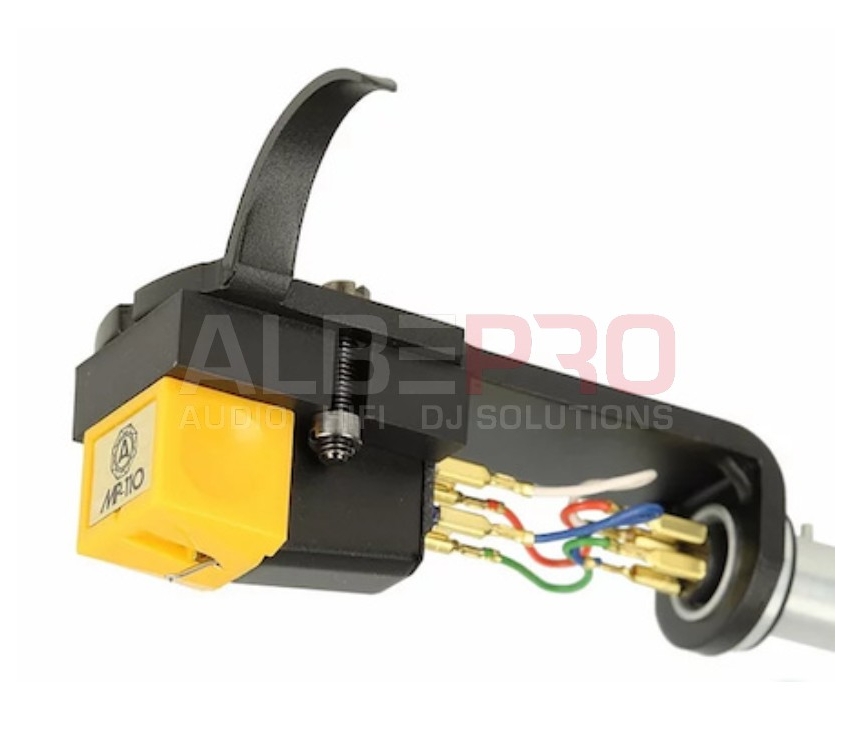

Nagaoka MP-110H cartridge mounted on a Nagoaka headshell
General:
The Nagaoka MP-110 has an aluminum cantilever and a compliance of 18 cu.
The frequency range is from 20 Hertz to 20 kiloHertz, the mass of an MP 110 is 6.5 grams and the maximum output voltage is 5 millivolts.
The MP-110 has a 'superfine polished' elliptical needle tip that is mounted on a metal collar (not a 'nude shank' diamond, that is what you get from the higher MP models).
The tracking force range of the MP-110 is from 1.5 to 2 grams.
The Nagaoka MP-110 needs about +/- 30 hours to be played independently and feels most comfortable with a VTA (stylus pressure) of 1.7 grams.
The Nagaoka MP-110 performs remarkably well, sounds delicate, airy and presents music with a spacious sound field.
Besides the fact that the Nagaoka MP-110 is pleasantly priced, this scanner is characterized by its lightness, articulation, overview and coherence, friendly clear reproduction and an admirable musical expressiveness.
The Nagaoka MP-110 even deserves the attention of seasoned vinylists looking for an affordable backup for their High End cartridge.
We are dealing here with honest and sophisticated craftsmanship that can be enjoyed for years.
The interchangeable needle carrier remains a practical advantage of Moving Magnet, Induced Magnet and Moving Iron cartridges (as well as their high output voltage).
The Nagaoka MP-110 is a true music maker.
Vinyl enjoyment for little money? You bet!
General:
The Nagaoka MP-110 has an aluminum cantilever and a compliance of 18 cu.
The frequency range is from 20 Hertz to 20 kiloHertz, the mass of an MP 110 is 6.5 grams and the maximum output voltage is 5 millivolts.
The MP-110 has a 'superfine polished' elliptical needle tip that is mounted on a metal collar (not a 'nude shank' diamond, that is what you get from the higher MP models).
The tracking force range of the MP-110 is from 1.5 to 2 grams.
The Nagaoka MP-110 needs about +/- 30 hours to be played independently and feels most comfortable with a VTA (stylus pressure) of 1.7 grams.
The Nagaoka MP-110 performs remarkably well, sounds delicate, airy and presents music with a spacious sound field.
Besides the fact that the Nagaoka MP-110 is pleasantly priced, this scanner is characterized by its lightness, articulation, overview and coherence, friendly clear reproduction and an admirable musical expressiveness.
The Nagaoka MP-110 even deserves the attention of seasoned vinylists looking for an affordable backup for their High End cartridge.
We are dealing here with honest and sophisticated craftsmanship that can be enjoyed for years.
The interchangeable needle carrier remains a practical advantage of Moving Magnet, Induced Magnet and Moving Iron cartridges (as well as their high output voltage).
The Nagaoka MP-110 is a true music maker.
Vinyl enjoyment for little money? You bet!
Specs
|
Cartridge and Stylus |
|
|
Model |
MP-110 |
|
Type |
Moving Magnet |
|
Frequency Response |
20-20.000 Hz |
|
Vertical Tracking Angle |
? ° |
|
Vertical Tracking Force |
1.3 – 2.0 g |
|
Recommended VTA |
1.8 g |
|
Stylus Construction |
Bonded diamond, square shrank, round shrank ? |
|
Stylus Shape |
Elliptical |
|
Stylus Curvature Radius |
0,4 x 0,7 mil |
|
Recommended Load Impedance |
Min. 47K ohms (when head amplifier is connected) |
|
Recommended Load Capacitance |
100 pF |
|
Coil Impedance |
? ohms (1 kHz) |
|
DC Resistance |
? ohms |
|
Coil Inductance |
? mH (1 kHz) |
|
Output Voltage |
5.0 mV (at 1 kHz, 5 cm/sec) |
|
Output Channel Balance |
Better than 1.5 dB (1 kHz) |
|
Channel Separation |
Better than 23 dB (1 kHz) |
|
Cantilever |
Aluminium, ? mm diameter |
|
Static Compliance |
? x 10-6 cm/dyne |
|
Dynamic Compliance |
? x 10-6 cm/dyne (100 Hz) |
|
Mounting |
Half-inch |
|
Cartridge Weight |
6.5 g |
|
Cartridge & headshell Weight |
16.5 g |
|
Wire Used for Coil |
? PCOCC |
|
Body Material |
? |
|
Mounting Feature |
Half-inch mount |
|
Terminal Pins |
Brass |
|
Dimensions |
18.0 mm H × 17.0 mm W × 28.6 mm D |
|
Accessories Included |
non-magnetic screwdriver 2 washers & 2 nuts cartridge installation screws 10 mm × 2,8 mm × 2 13 mm x 2,8 mm x 2 plastic protector; |
|
Notes |
Mounting Feature: |
