The Nagaoka DJ-03HD including Nagaoka headshell
This is the Nagaoka DJ pickup. With a high output voltage of 6 mV and a recommended tracking force of 3 - 5 g, it is one of the best stable in its class.
Nagaoka replacement stylus GJN-03D is also available from ALBEPRO
The DJ-03HD is supplied with 2 headshell weights of respectively 1.60 grams each.
(also called Headshell Shell Weight)
You can place each shell weight between the cartridge and the headshell to create more needle pressure if you are unable to use the counterweight of your tonearm.

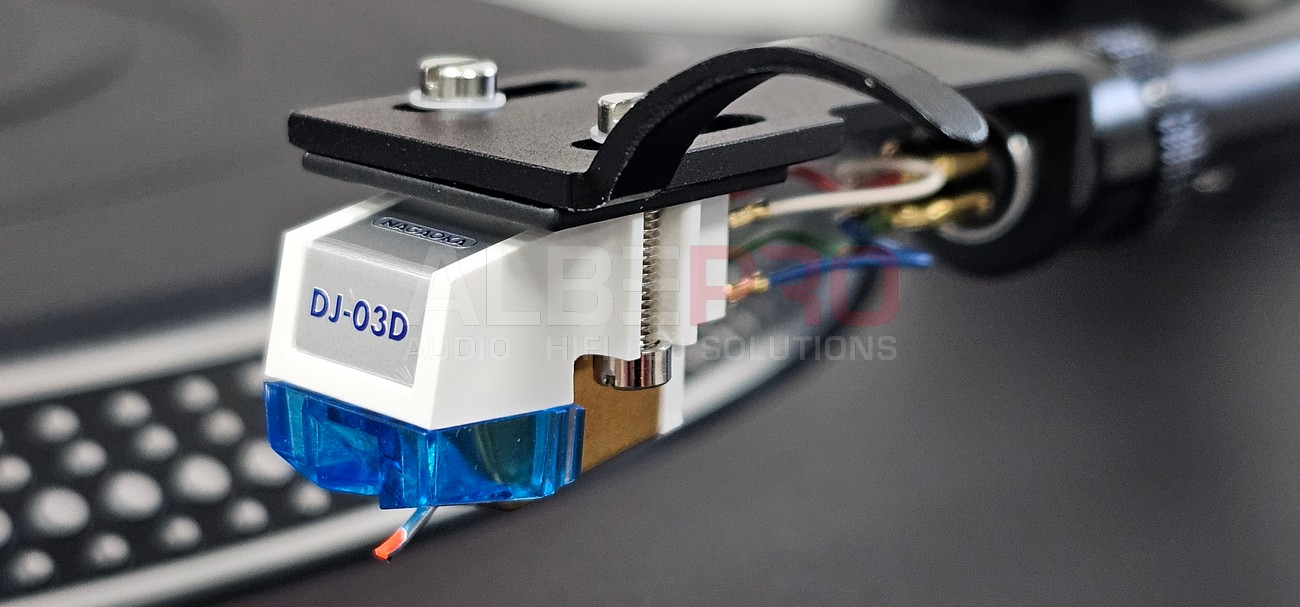

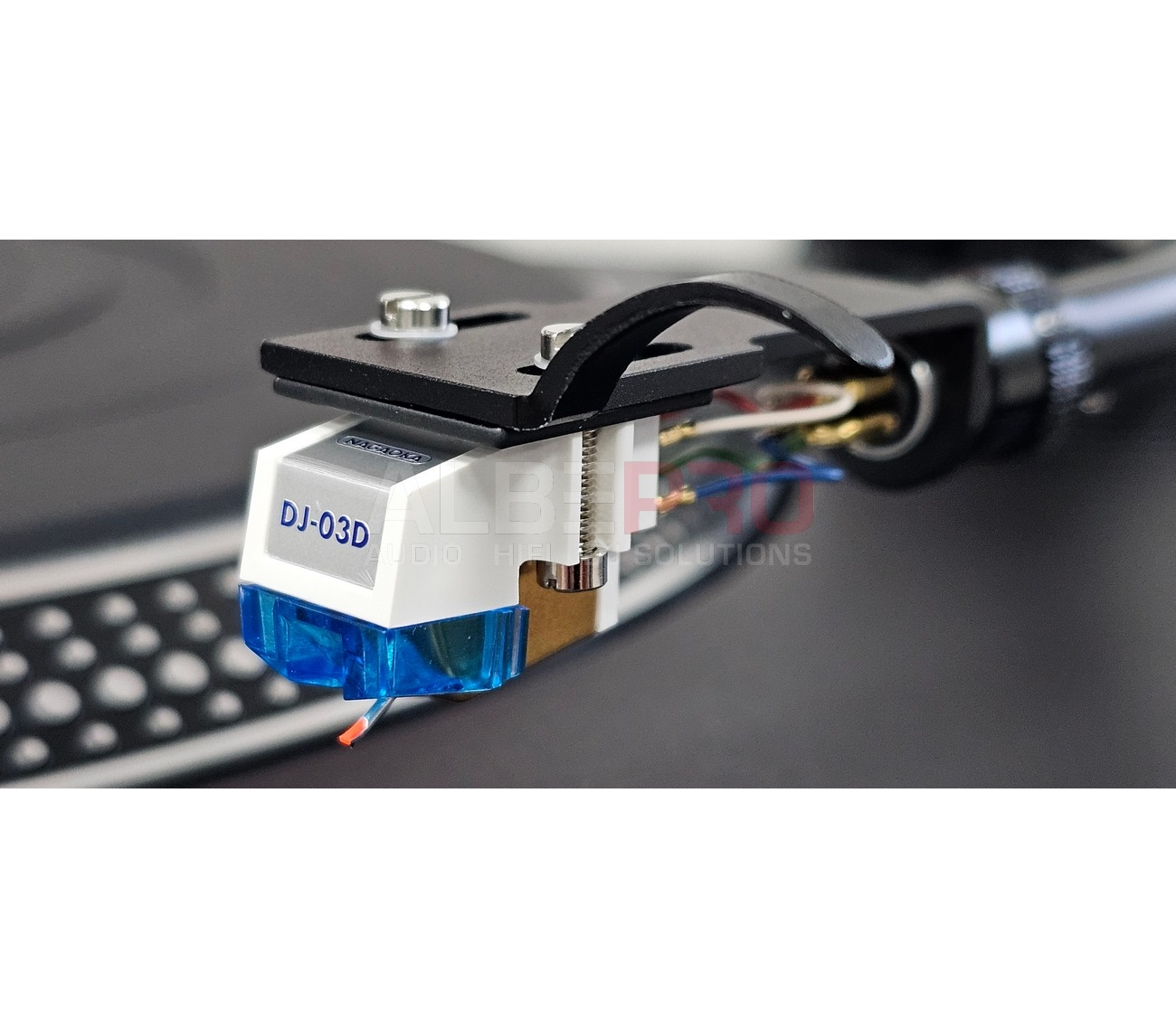

Precise DJ cartridge mounted on a headshell from the Japanese manufacturer NAGAOKA.
Thanks to the clever and high-quality construction, including the materials used, it is one of the highest quality transmissions for DJ use in general, and the price corresponds to that.

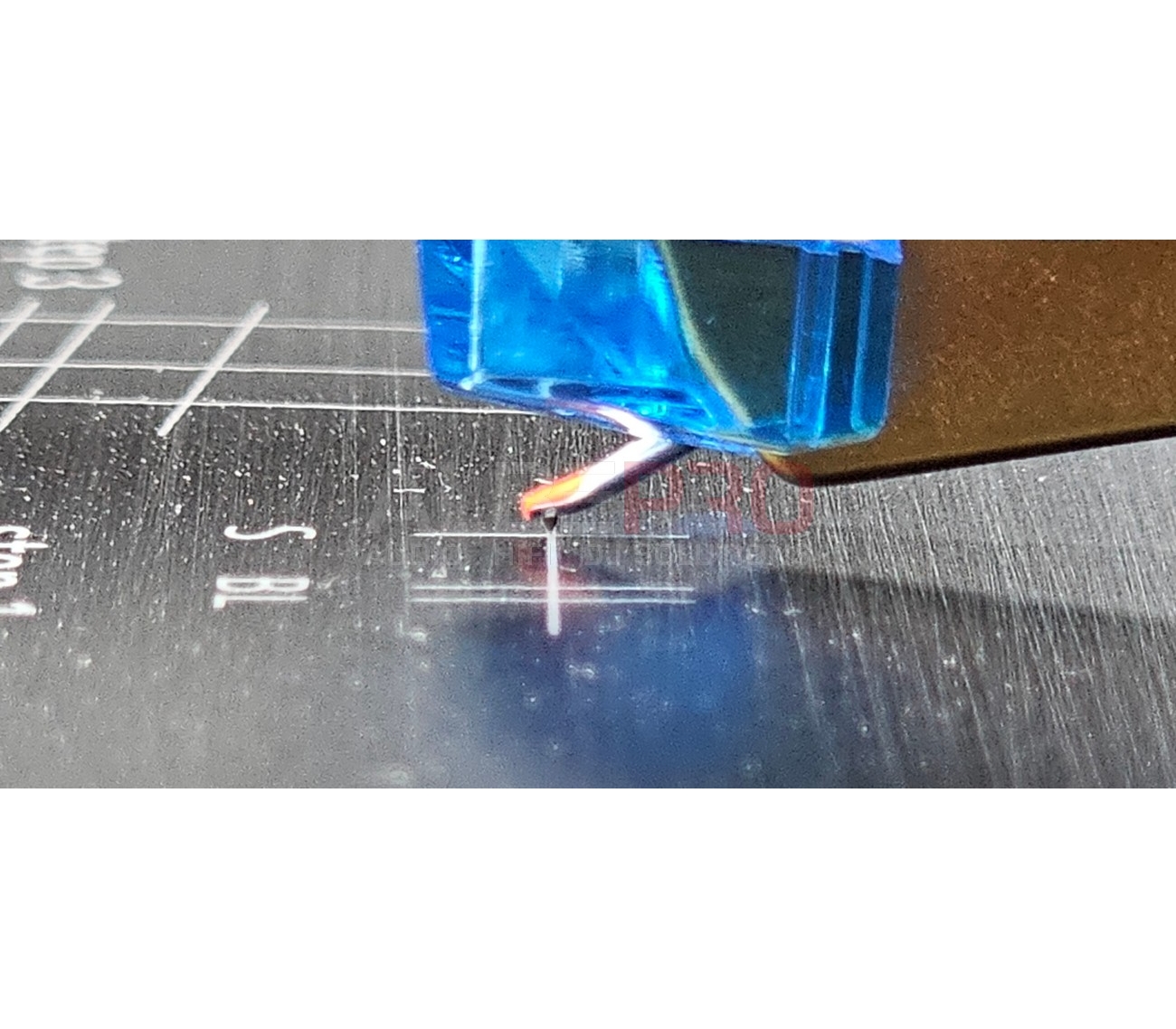

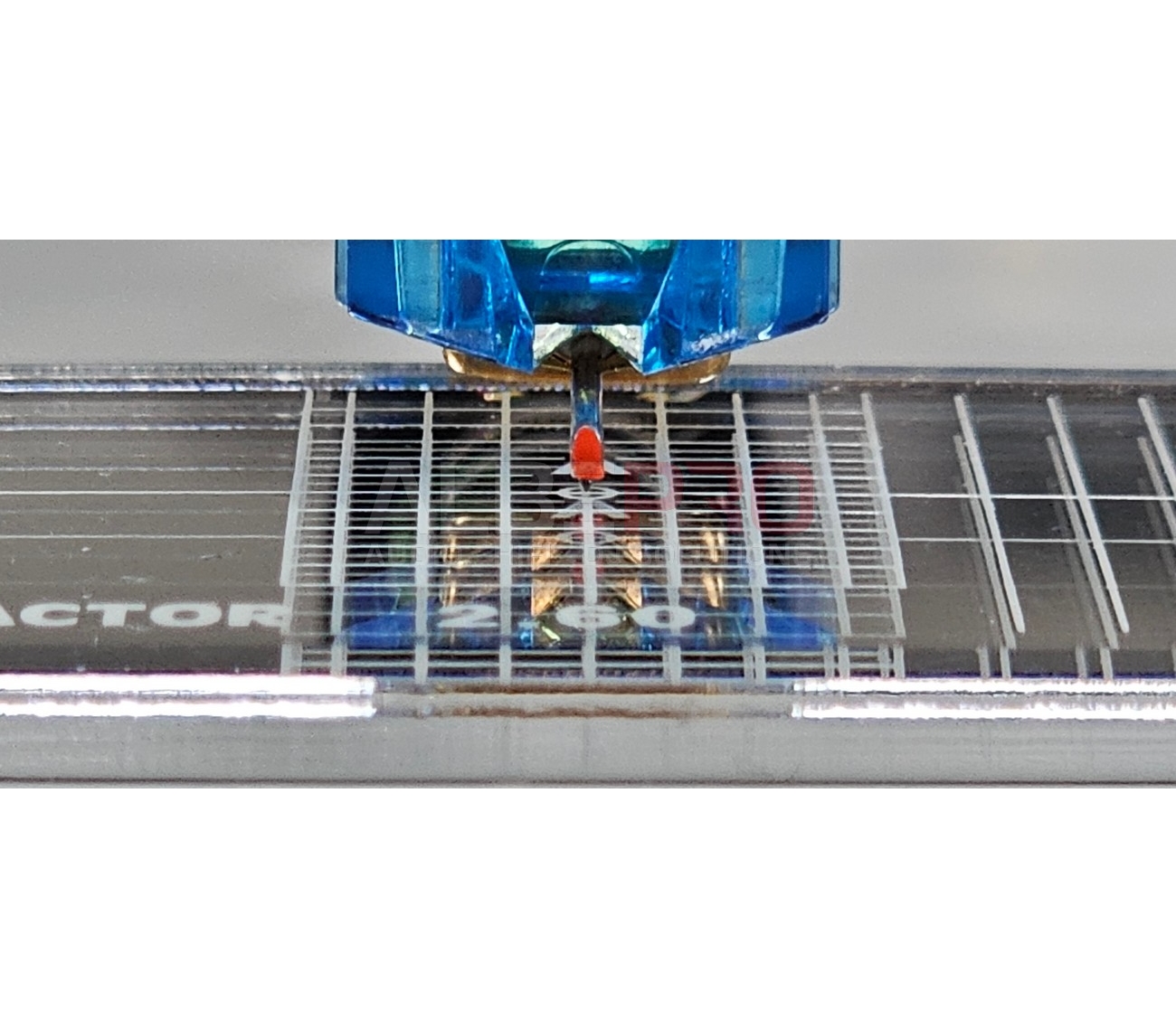

The fluorescent tip makes it easy for the DJ to put the stylus in the desired part of the groove.
Thanks to the range of pressure, the portable can also be used for backspin or lighter scratching, a number of training hours of +/- 30 hours is required.
Moving Iron "MI" system can be connected to preamplifiers with MM system.
Replaceable tip is a matter of course.
A high-quality conical diamond tip has a relatively decent lifespan even with a higher load on the portable where the range is possible from 3 to 5 grams.
Nagaoka is one of the leading manufacturers , and very well known in the market, which also produces for other brands.
Nagaoka use their patents and inventions and therefore these products are exceptional on the market with their specific soft and warm sound.
Specs DJ-03HD
Type: Moving Magnet (MM)
Principle: Nagaoka MI technology® MI (Moving Iron)
Canteliver: aluminum alloy
Installation: 1/2 ″ mounting
Tip: Superfine polished conical stylus - conical diamond
Magnet: Powerful Samarium Cobalt Magnet - samarium with cobalt
Output voltage: 6mV (5cm / SEC)
Frequency range: 20 Hz - 20 kHz
Channel balance: 1 kHz:> 2.0 dB
Crosstalk between channels: 1 kHz:> 22 dB
Impedance: 47 kΩ
Capacity: 100pF
Weight: 5.1 g
Recommended pressure: 3 ~ 5g
