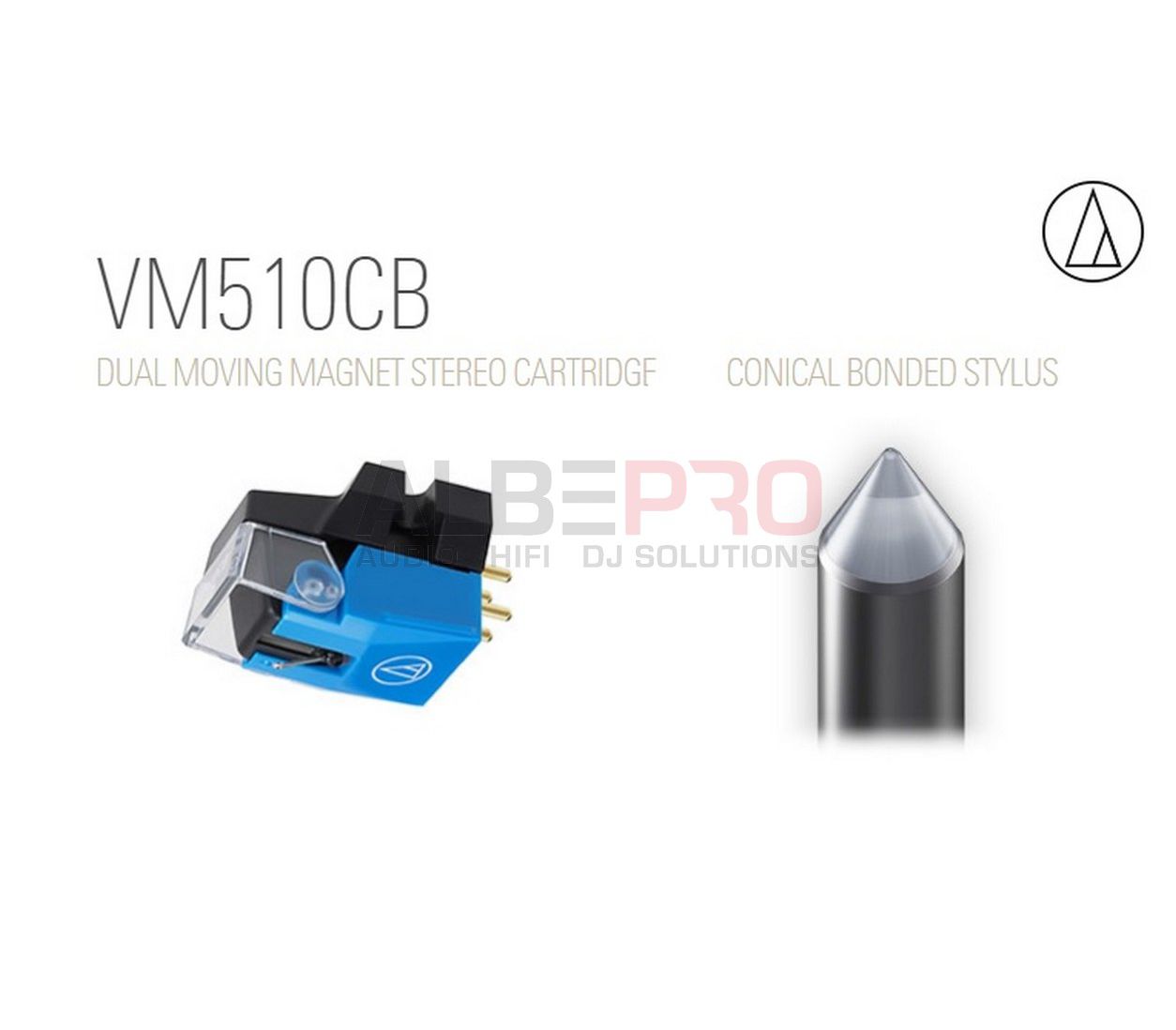

Audio-Technica VM510CB

VM510CB

DUAL MOVING MAGNET STEREO CARTRIDGE WITH CONICAL STYLUS

• Conical Bonded stylus
• VM type dual magnet system
• Para-toroidal coils improve generating efficiency
• Aluminium cantilever
• Centre shield plate between stereo channels
• Durable low resonance polymer housing

PRODUCT FEATURES

• Conical Bonded stylus for less critical tilt angle adjustment allowing more flexible use on various tonearms.
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Durable low resonance polymer housing

VM510CB

DUAL MOVING MAGNET STEREO CARTRIDGE

Entry-level VM cartridge model equipped with a conical bonded stylus. The round stylus is less likely to be affected by placement and boasts stable tracing performance.

• Aluminium cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Durable low resonance polymer housing

AUDIO-TECHNICA’S INTERNATIONALLY-PATENTED DUAL MAGNET DESIGN REPLICATES THE STRUCTURE OF THE CUTTER HEAD.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
