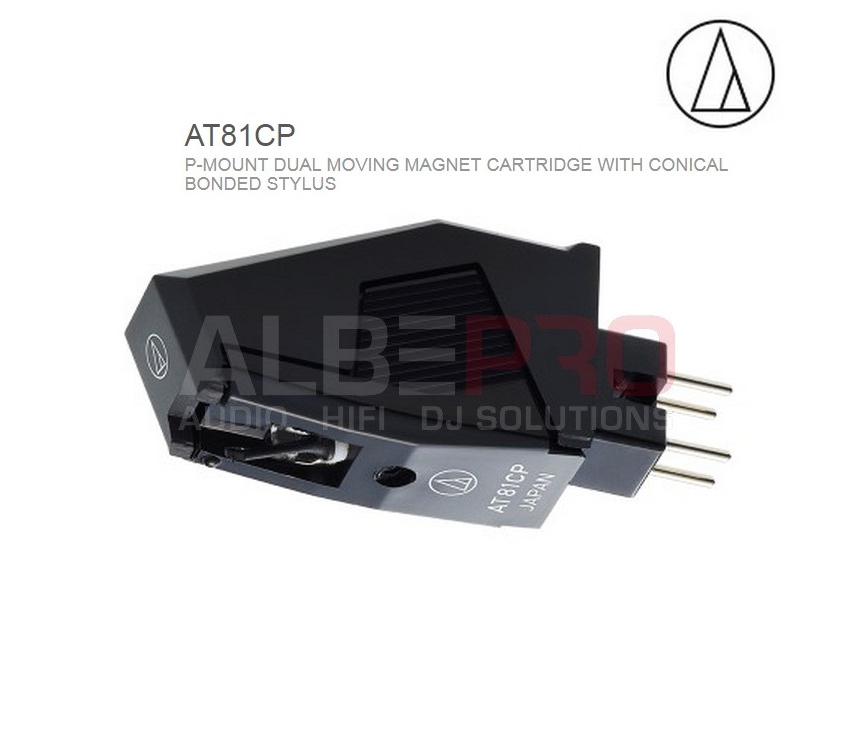

AUDIO-TECHNICA AT81CP
P-MOUNT DUAL MOVING MAGNET CARTRIDGE WITH CONICAL BONDED STYLUS
- 0.6 mil conical stylus
- Bonded round shank diamond
- Carbon Fibre Reinforced ABS cantilever
The AT81CP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.
Designed specifically for the linear format, the AT81CP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.
SPECIFICATIONS
Type | Dual Magnet |
Mounting | P-mount |
Frequency Response | 20 - 20,000 Hz |
Channel Separation | 18 dB at 1kHz |
Output Channel Balance | 2.5 dB |
Output Voltage | 3.5 mV (mV at 1 kHz, 5 cm/sec) |
Vertical Tracking Angle | 20° |
Vertical Tracking Force Range | 1.0 - 1.5g |
Stylus Shape | Conical |
Stylus Size | 0.6 mil |
Stylus Construction | Bonded Round Shank |
Cantilever | Carbon Fibre Reinforced ABS |
Coil Inductance | 400mH (1 kHz) |
Recommended Load Impedance | 47,000 ohms |
Recommended Load Capacitance | 100-200 pF |
Weight | 6.0g |
Dimensions | H10.0×W15.3×D35.1 mm |
Replacement Stylus | ATN81CP |
