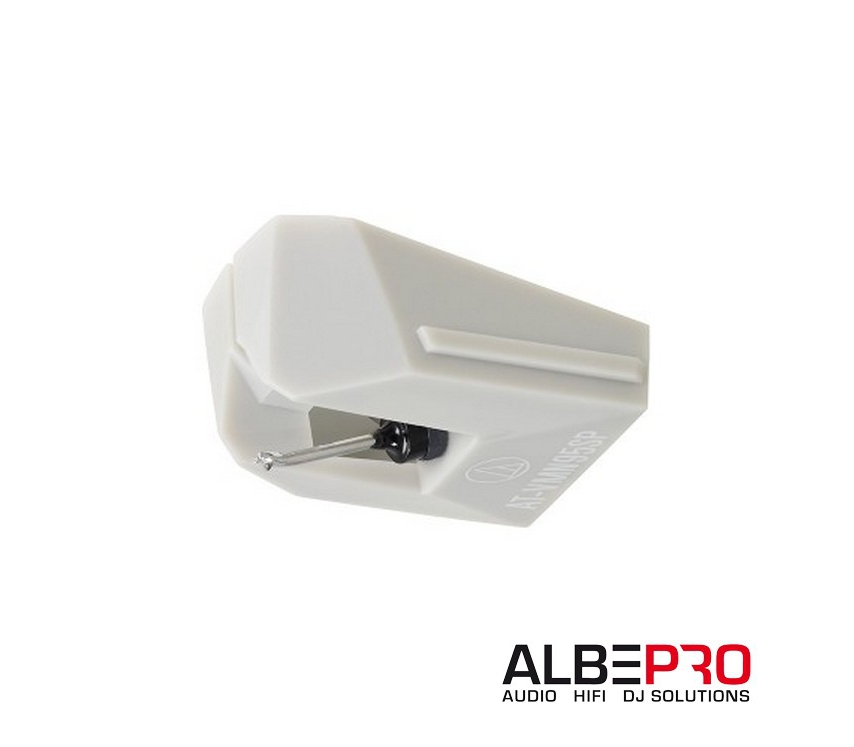

AT-VMN95SP
VM95 series 78rpm SP replacement stylus
- Aluminium cantilever
- SP 3mil Conical Stylus
- Bonded Round Shank
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
Conical Bonded (3mil) Stylus
A conical bonded stylus with a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.
No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers
Specifications
Model | AT-VM95SP |
Type | VM Stereo Dual Magnet |
Bevestiging | 1/2” centres |
Frequentierespons | 20 - 20,000 Hz |
Balans uitgangskanaal | 1.5 dB (1 kHz) |
Uitgangsspanning | 2.7 mV (@ 1 kHz, 5 cm/sec) |
Verticale trackinghoek | 23° |
Bereik verticale trackingskracht | 4.5 - 5.5g (standard 5.0g) |
Naaldvorm | SP 3 mil Conical Bonded |
Naaldgrootte | 3 mil |
Naaldconstructie | Bonded Round Shank |
Cantilever | Aluminium Pipe |
Spoelimpedantie | 3.3 kΩ (1 kHz) |
Spoelinductantie | 550 mH (1 kHz) |
Gelijkstroomweerstand | 485 Ω |
Statische compliantie | 12 x 10 – 6 cm / dyne |
Dynamische compliantie | 2 x 10 – 6 cm / dyne (100 Hz) |
Spoeldraad | T.P. Copper |
Aanbevolen ladingsimpedantie | 47,000 Ω |
Aanbevolen ladingscapaciteit | 100-200 pF |
Elementgewicht | 6.1g |
Afmetingen | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
Vervangingsnaald | AT-VMN95SP |
Meegeleverde accessoires | Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
